5 Axis CNC Milling
Experience supreme precision with our 5-axis CNC milling services. We can handle even the most complex designs methodically and efficiently, ensuring every detail is perfect.

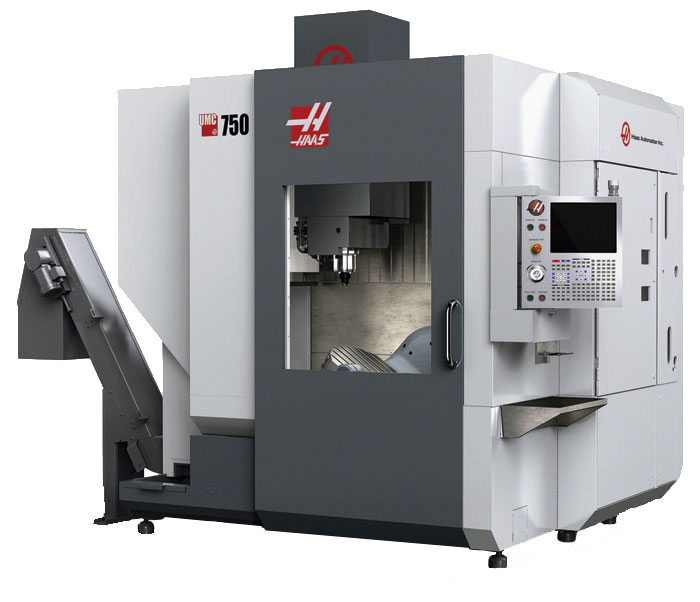

The UMC-750SS has an integrated high-speed, dual-axis trunnion table with a 500 mm diameter platter that features standard T-slots and a precision pilot bore for fixturing versatility. The trunnion provides +120 and -35 degrees of tilt and 360 degrees of rotation to provide excellent tool clearance and large part capacity.
Specifications below

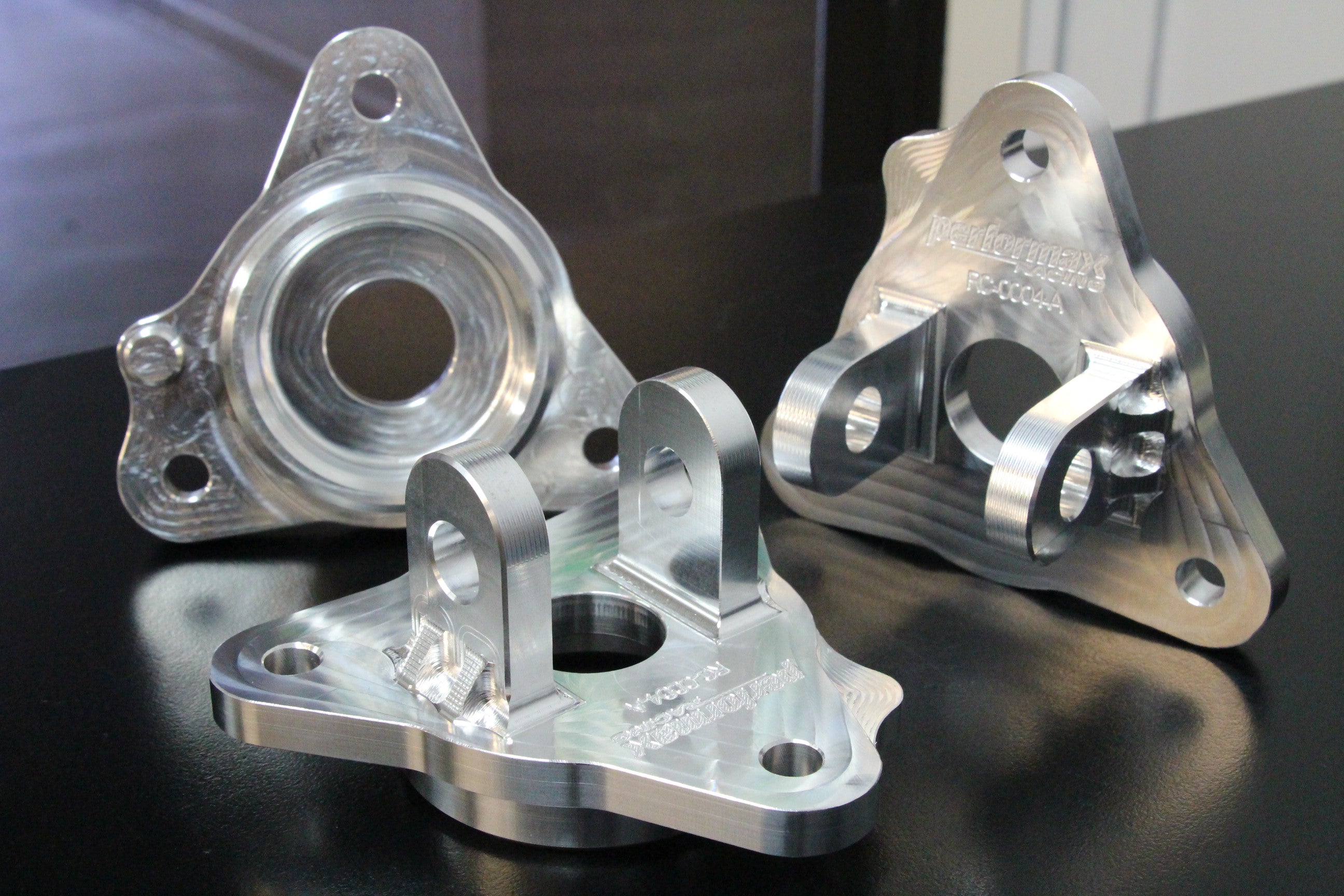

Shock Absorber Plate
___________________

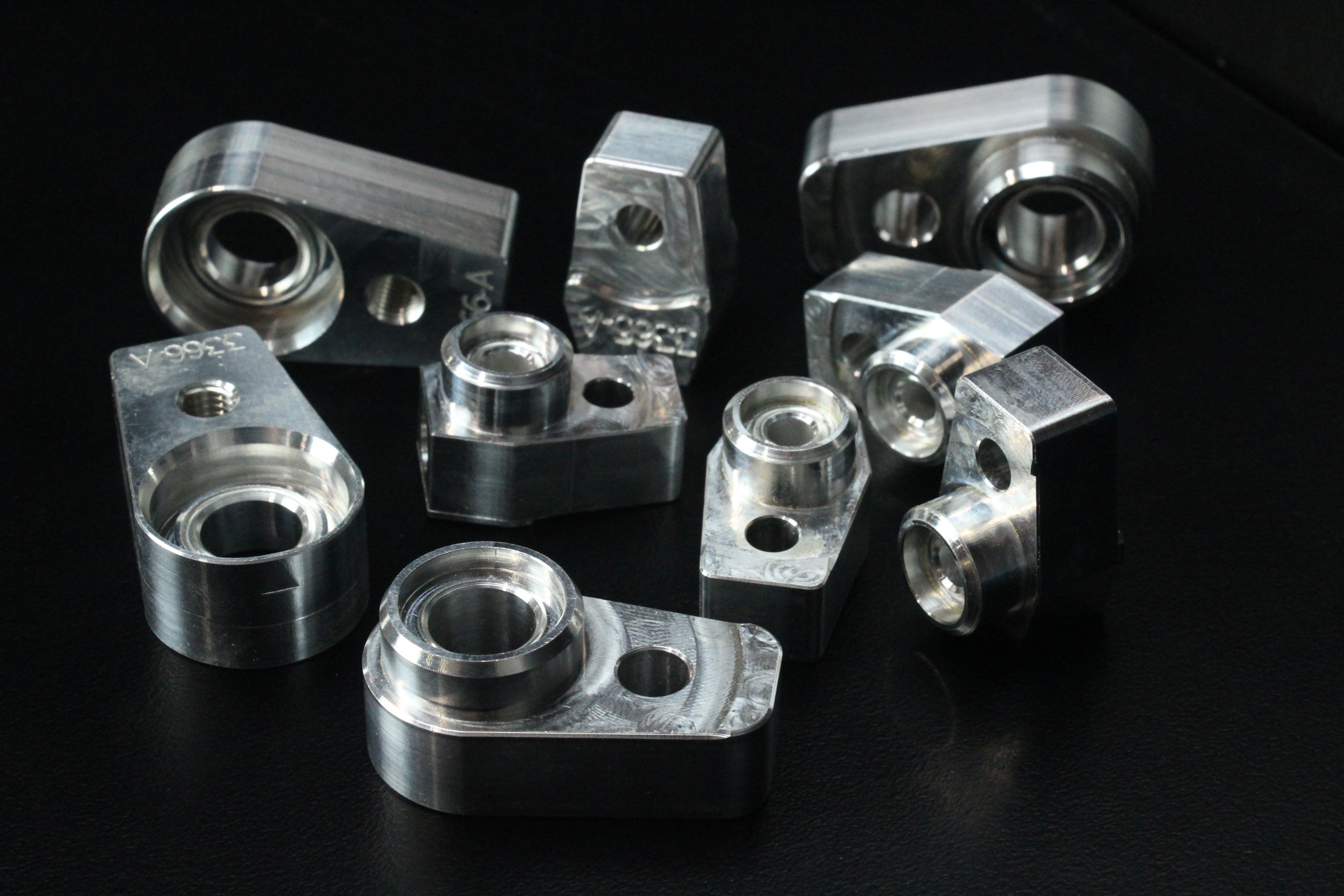

AC Compressor Bracket

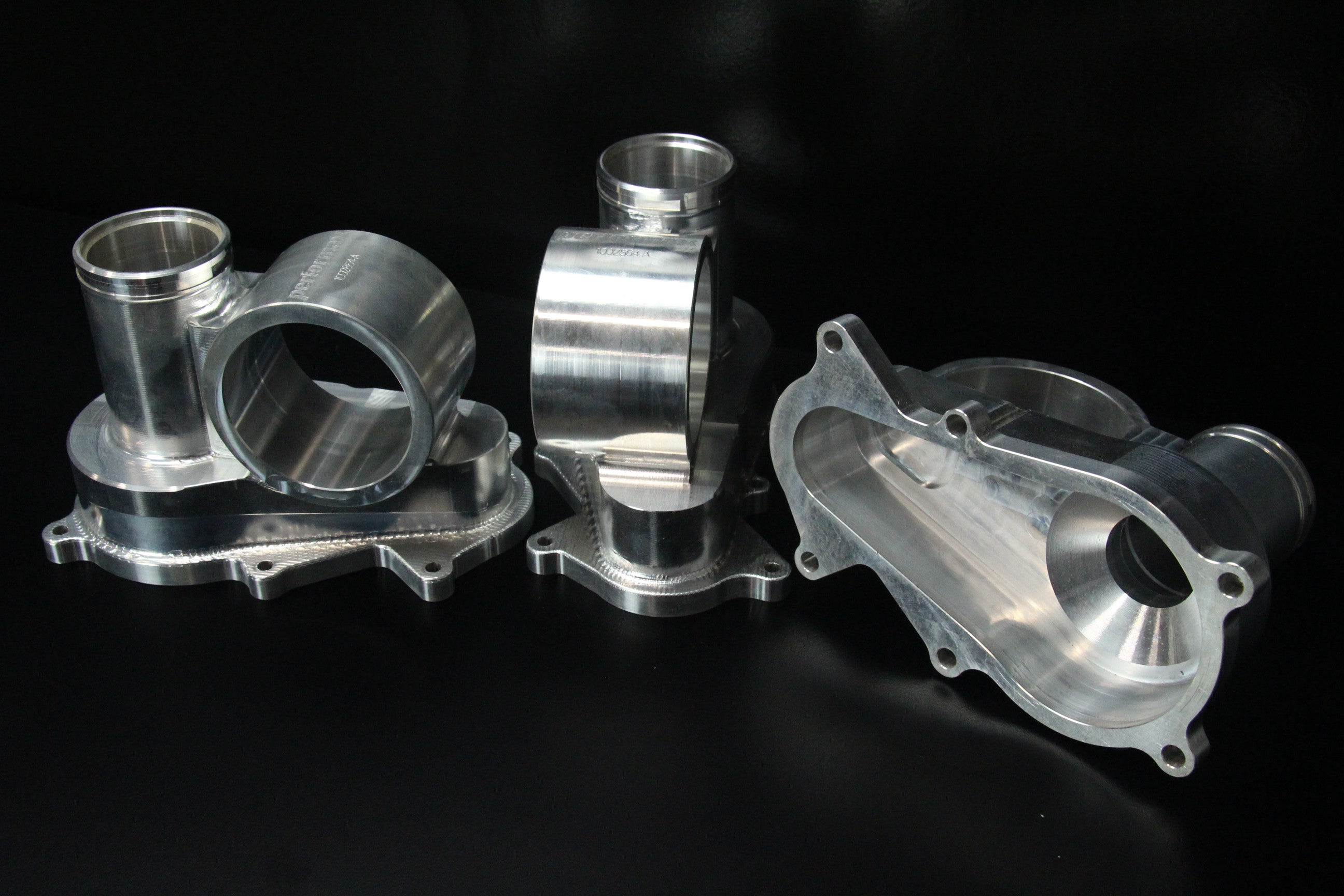

Housing
AC Blocks
Machine Specifications
HAAS
UMC750SS
300KG
500mm Diameter x 500mm Long
15000rpm
Inline Direct-Drive
